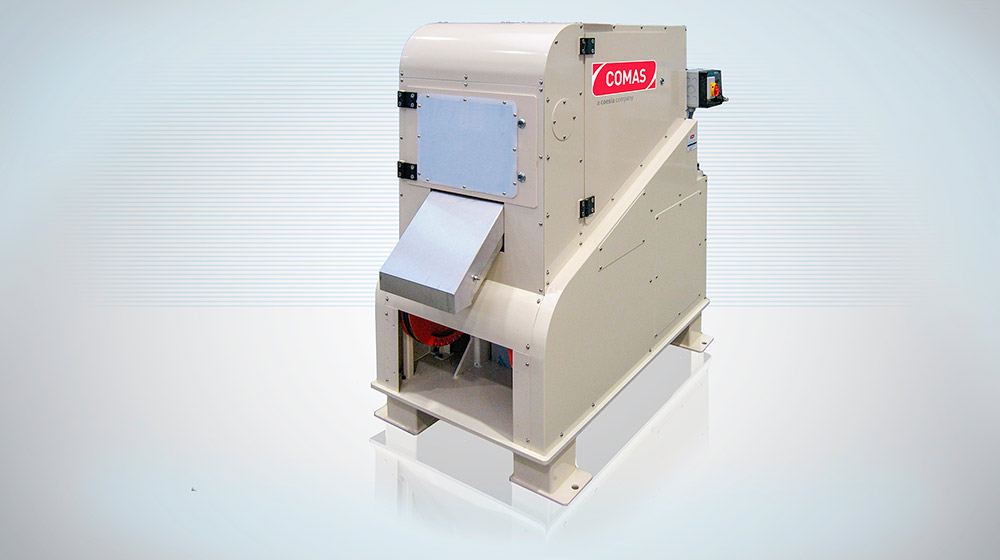

CUT-TOM Cutter (Guillotine)

Tobacco strips cutting machine

Basic Info

  • TECHNOLOGY: Cutting
  • INDUSTRY: Tobacco
  • SEGMENT: Tobacco Cut Rag

Description

‚ÄčThe new CUT-TOM Cutter is the perfect solution for Shisha plants and it is suitable to process small batches of raw materials (tobacco and different types of botanicals).
The CUT-TOM is suitable for capacities ranging from 150 kg/h up to 650 kg/h.

Its compact dimensions guarantee a minimal equipment footprint:

  • Length: approx. 1.650 mm
  • Width: approx. 940 mm
  • Height: approx. 1.650 mm
  • Weight: approx. 1.500 kg

Main features:
  • Moisture content of whole leaf: 22-24%
  • Cutting width range: 3-11 mm
  • Discharge mouth width: 250 mm
  • Total power requirements: 4 kW
  • Separate mechanism system for knives grinding

Strong points of the new CUT-TOM Cutter:
  • Ease of operation, maintenance and cleaning
  • Multi-purpose cutting (vertical/cross cut)
  • Simple knife replacement
  • Quick cut-width size change (from 3mm to 11mm)
  • High safety standards during operation
  • Adjustable system to adapt the speed of the machine
