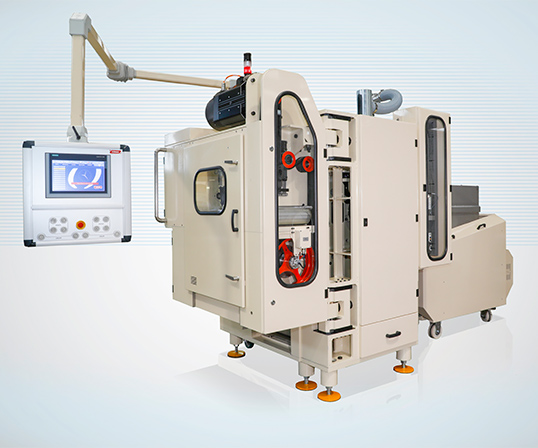

A1M series (Mini Cutter)

Tobacco strips and stems cutting machine.

Basic Info

  • TECHNOLOGY: Cutting
  • INDUSTRY: Tobacco
  • SEGMENT: Tobacco Cut Rag

Description

‚ÄčThe new A1M Cutter is the perfect solution for plants designed to process small quantities of raw materials (small production batches of lamina & stems, cloves, botanicals, etc.).
The Mini-Cutter is suitable for capacities ranging from 400 kg/h up to 2500 kg/h.
Every A1M cutter is manufactured to the highest specifications and offers a superior cut quality for all your products.Its compact dimensions can minimize the equipment footprint:

  • Length: approx. 2.800 mm
  • Width: approx. 1.750 mm
  • Height: approx. 2.450 mm
  • Weight: approx. 6.560 kg
    (The figures are referred to the cutter and integrated electrical cabinet)
 The new A1M Cutter maintains the same simple mechanism for knives automatic adjustment and substitution as the standard A1 model and it is provided with an automatically adjustable system to adapt the upper band to match the production speed.The advantages offered by this new model are:
  • Enhanced superior cut product
  • Reduced pull outs
  • Ease of operation, maintenance and cleaning thanks to the hinged cutting head
  • Improved consumables lifetime
  • Very competitive price
  • Most advanced mechanical and electronic technologies available
  • Low mouth pressure
  • Dual purpose for cutting lamina/stems
  • User friendly operator interface (HMI)
  • Rapid replacement of consumables (knife and grindstones)
  • Extended life of knives and grindstones due to being able to store multi-blend cutting parameters
  • Efficient heating of the rotary cutting drum
  • Efficient dust extraction, with no internal contamination
  • Computerised memory storage for knife and grindstone feed positions, to assist with planning replacement schedules and also providing for automatic repositioning of the newly installed consumables
  • Each cutter can be supplied with its own dust collection filter.
